FILE 01 · Architecture

Woodland Grove

Year: 2024
Course: DES 302
Location: Grandview-Woodland, Vancouver, BC
Program: Multifamily housing for displaced communities

Project statement01

Woodland Grove asks what long-term, equitable housing looks like for the 144,035 asylum seekers currently in Canada. Six interconnected suites wrap a central stairwell, vertical gardening tower, and cherry blossom terrace, so that circulation itself becomes the place where community forms. A free daycare on the ground floor doubles as an employment opportunity for residents, and shared amenity rooms host job training workshops, tenant meetings, and community dinners.

Research02

Site analysis and statistics

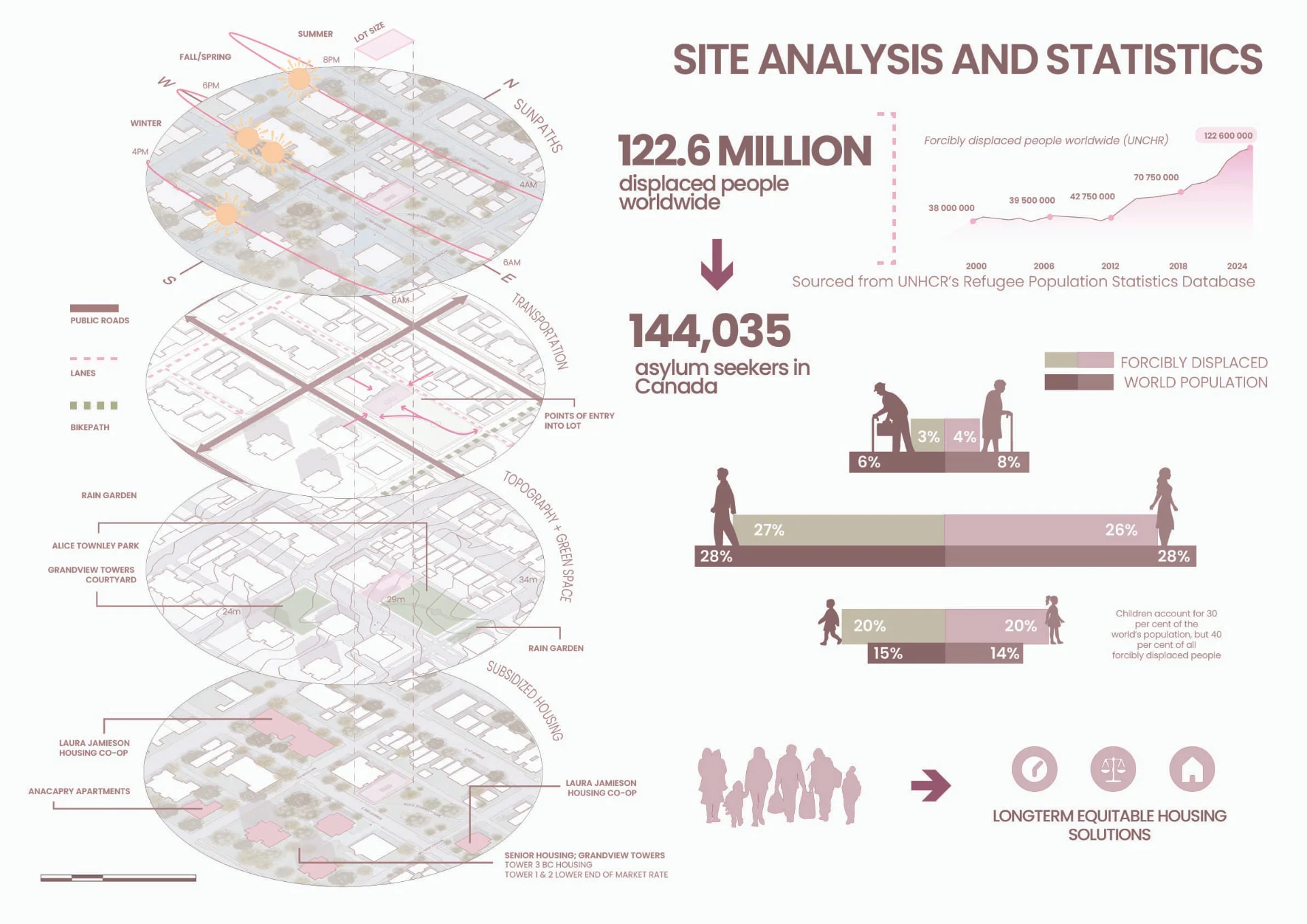

Sunpaths, transportation, topography, and the existing landscape of subsidized housing around E 2nd Ave and Woodland Dr, read alongside global and national displacement data.

Development03

Unit organization and circulation

An exploded axonometric traces how three 2-bedroom and three 3-bedroom units stack around the communal core, with the stairwell and terrace binding the building vertically.

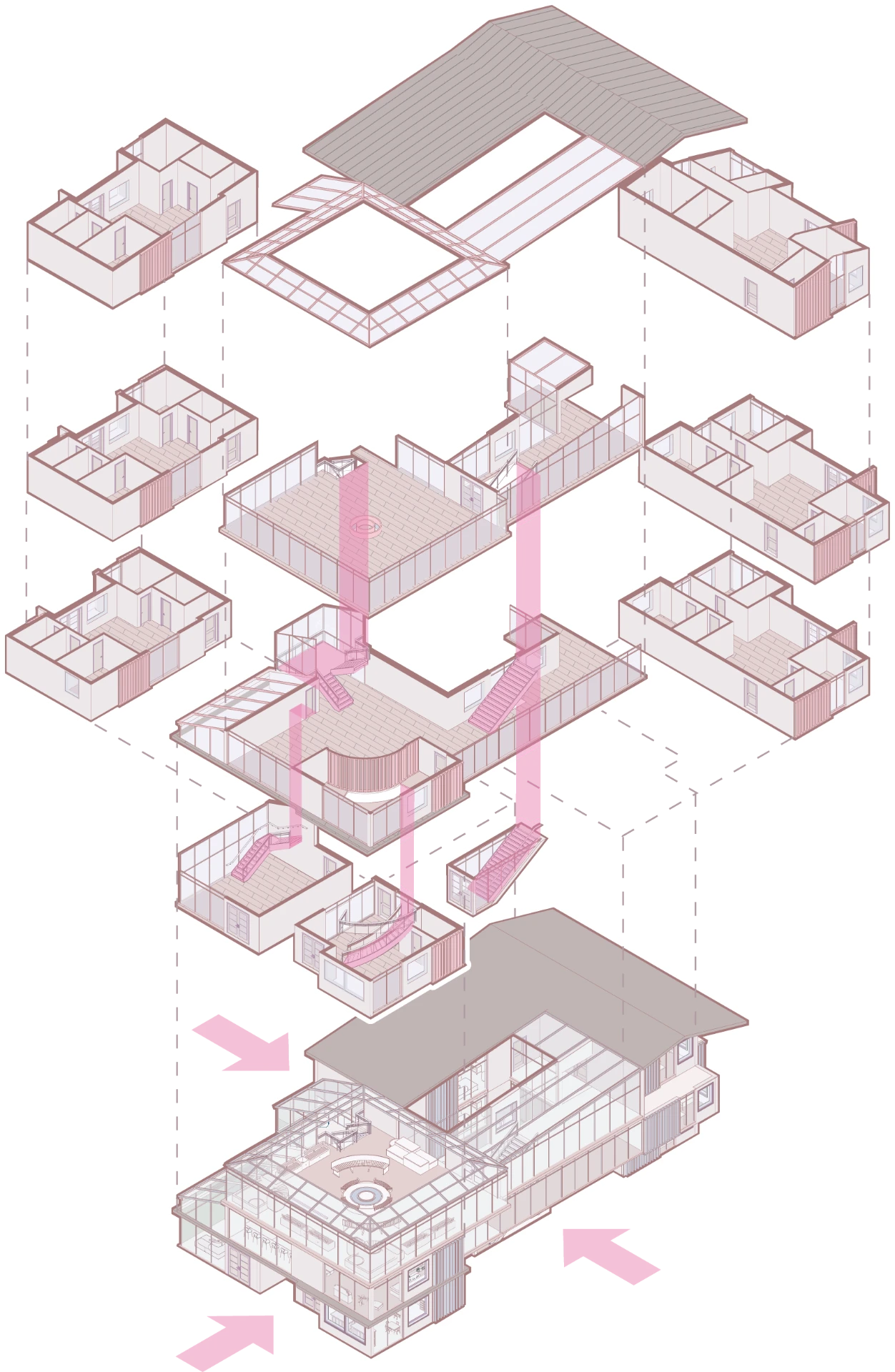

Exploded axonometric of Woodland Grove showing stacked units, communal core, and roof — Exploded axonometric - unit stacking

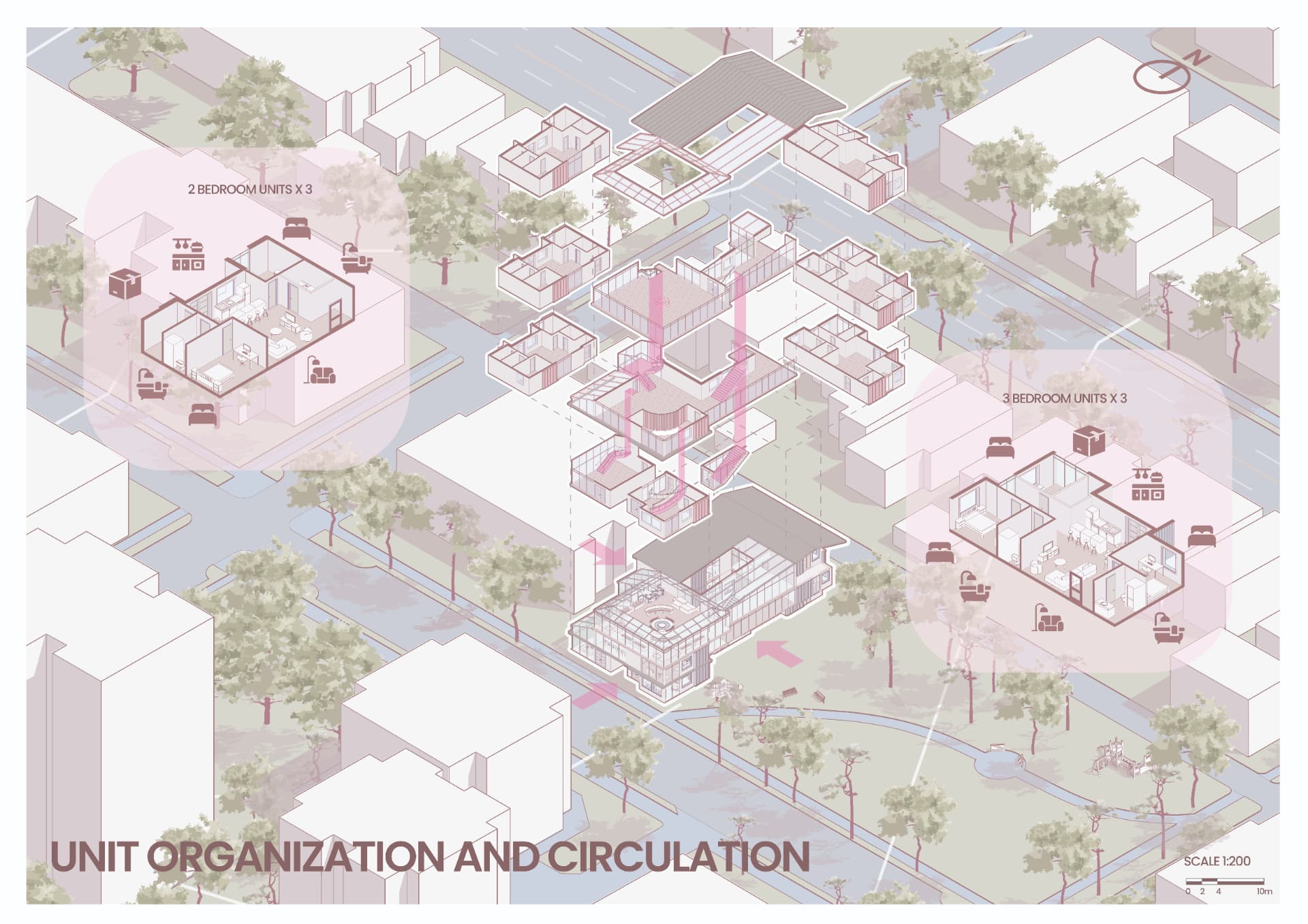

Isometric site drawing showing unit organization and circulation with 2 and 3 bedroom unit callouts — Unit organization and circulation, 1:200

Drawings04

Floor plans, elevation, sections

Levels 01-03 hold six units at a maximum occupancy of roughly thirty people, with communal space and a daycare anchoring the ground plane. Section perspectives cut through the communal core and the central stairwell.

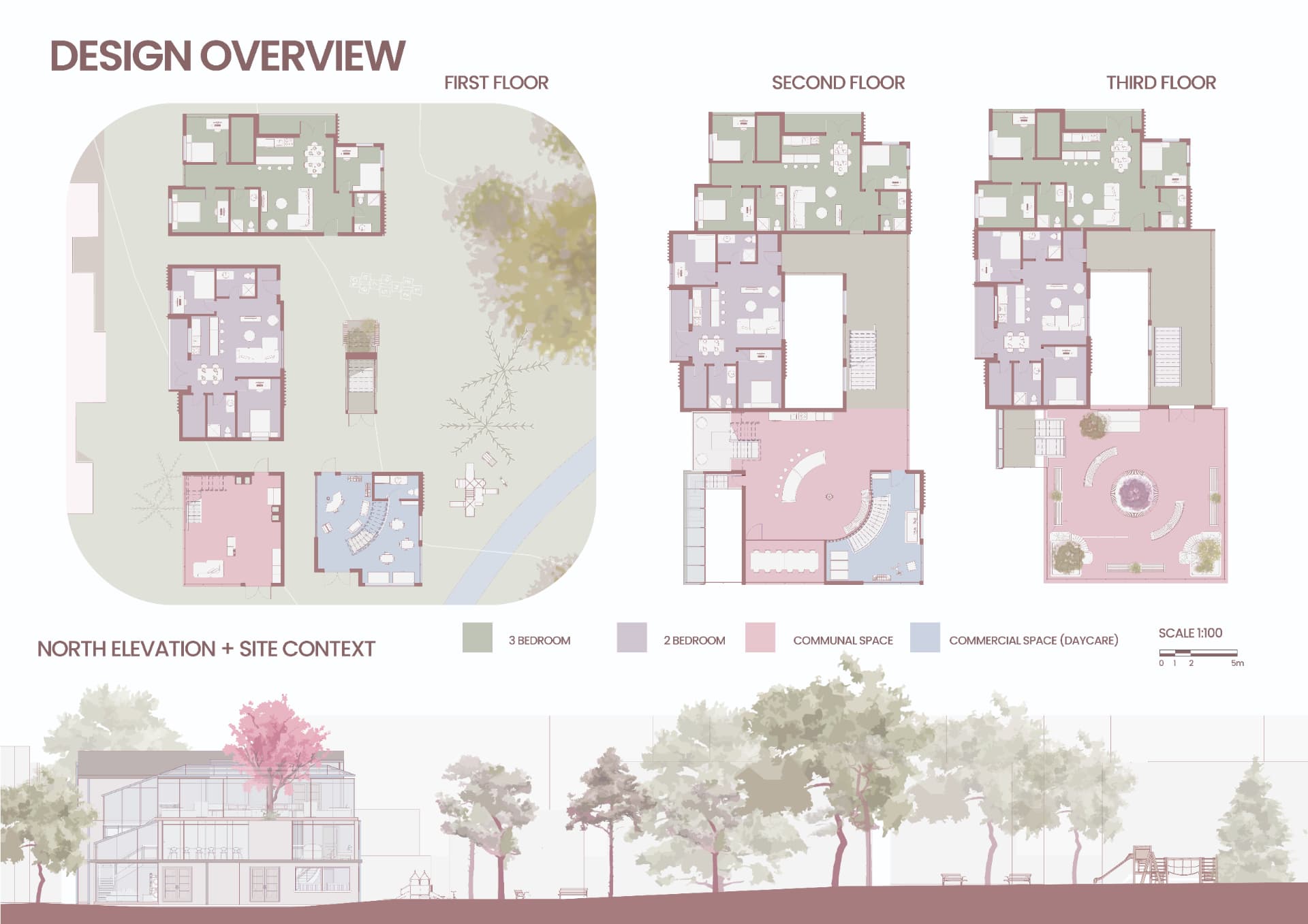

Design overview board with first, second, and third floor plans plus north elevation and site context — Floor plans levels 01-03 + north elevation, 1:100

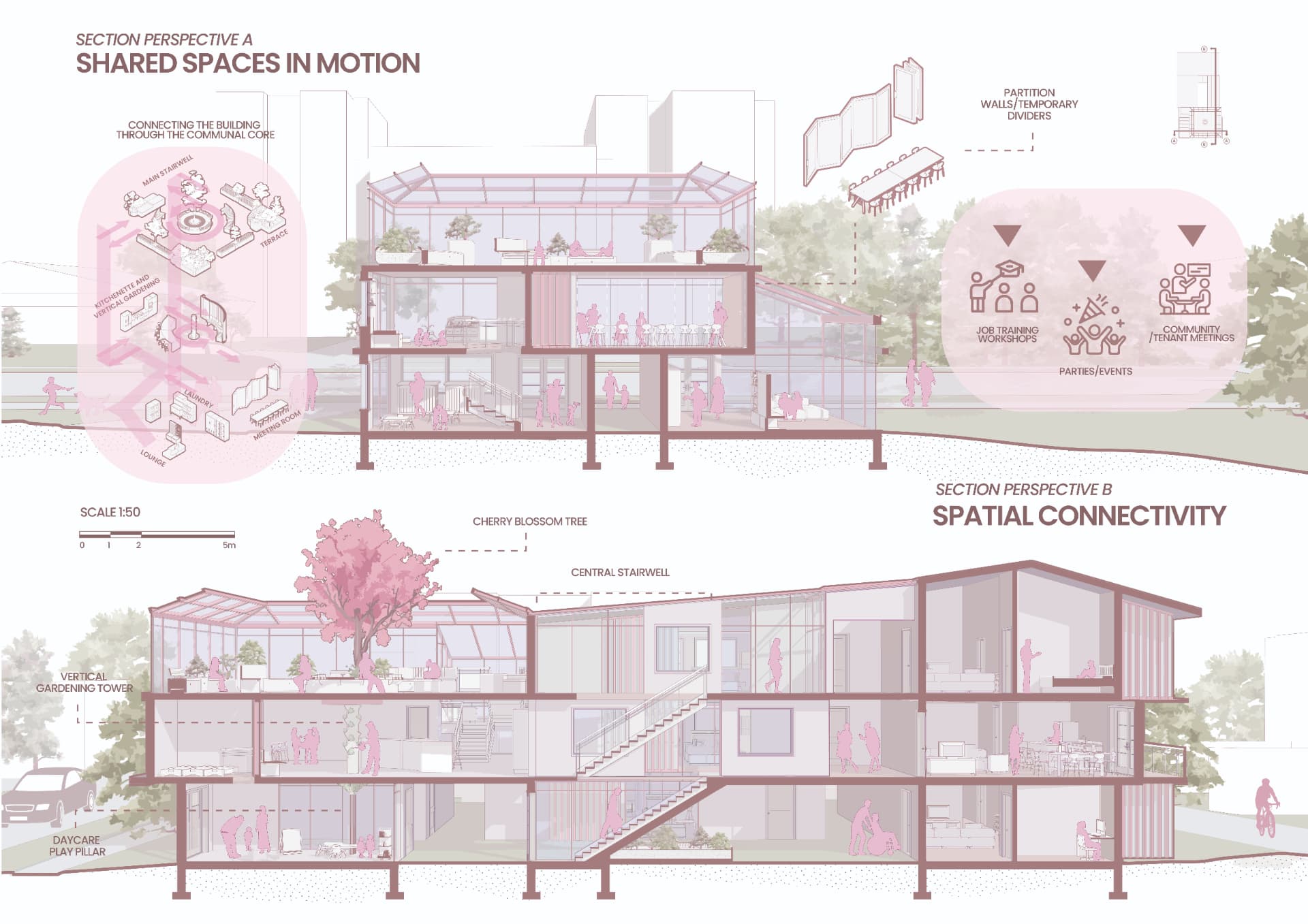

Section perspectives A and B showing shared spaces in motion and spatial connectivity — Section perspectives A + B, 1:50

Final05

Rendered perspectives

Rooftop terrace render with cherry blossom tree, string lights, and residents gathering — Terrace - collective healing and gathering

Amenity space render with vertical farming tower, residents reading and playing guitar — Amenity space - vertical farming tower

Daycare render with children playing around the central play pillar — Daycare - play pillar

Woodland Grove exterior render at dusk from the street — Street approach at dusk

Project metadataColophon

Year: 2024
Course: DES 302
Location: Grandview-Woodland, Vancouver, BC
Program: Multifamily housing for displaced communities
Tools: Revit, Rhino, Twinmotion, Photoshop, Illustrator, InDesign
Collaborators: Individual work
