FILE 02 · Architecture

Ocuilan Dwelling

Year
2024
Course
DES 302
Location
Ocuilan de Arteaga, Mexico
Program
Case study - emergency post-earthquake home
Isometric site plan of the Ocuilan dwelling set among forest and neighbouring structures
Project statement01

Built after the 2017 earthquake under the PienZa Sostenible and Reconstruir Mexico programs, this 50 sq m house was designed for Reyna, her two sons, and a disabled elderly family member, one of fifty families who did not qualify for government emergency aid. The study traces how the project reinterprets traditional rural Mexican architecture through a loft, an outdoor kitchen shared with relatives nearby, and ecoblock bearing walls made from 90 percent local soil. Drawn and researched with Ashna Dhaliwal and Hannah Jang, the work documents how direct collaboration with homeowners produced a home that improves quality of life without displacing the way the family already lives.

Research02

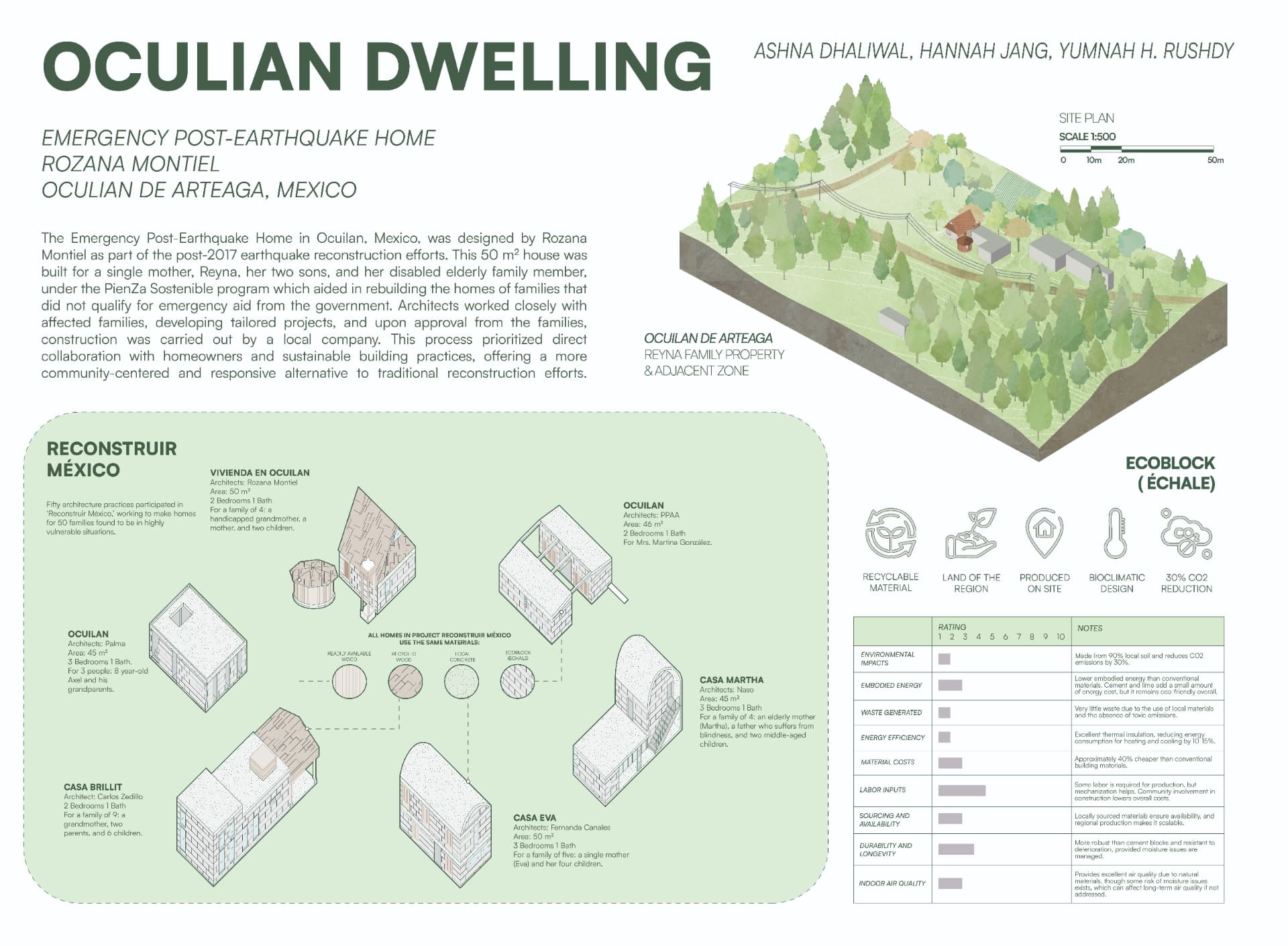

Reconstruir Mexico and site

The title board sets the house within the fifty-home Reconstruir Mexico effort, comparing each practice's dwelling, and rates the ecoblock system across environmental impact, embodied energy, cost, and indoor air quality.

Title board: project description, site plan at 1:500, Reconstruir Mexico homes, and ecoblock rating matrix
Context, site plan 1:500, and ecoblock evaluation
Analysis03

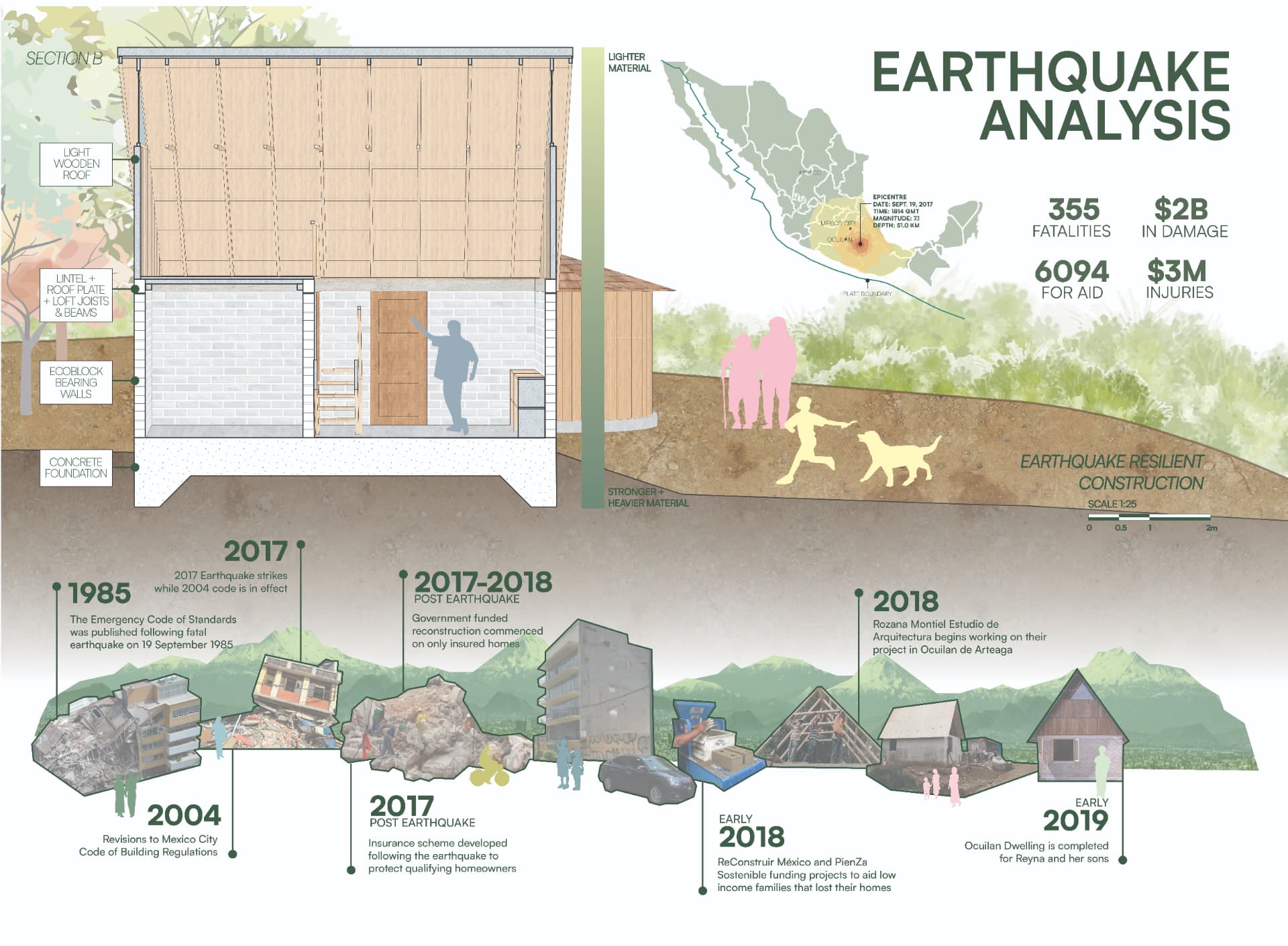

Earthquake analysis and timeline

Section B unpacks the earthquake-resilient assembly from concrete foundation to light wooden roof, alongside a timeline running from the 1985 Emergency Code of Standards to the dwelling's completion in early 2019.

Earthquake analysis board with Section B, epicentre map, statistics, and a 1985 to 2019 reconstruction timeline
Section B 1:25 + reconstruction timeline
Drawings04

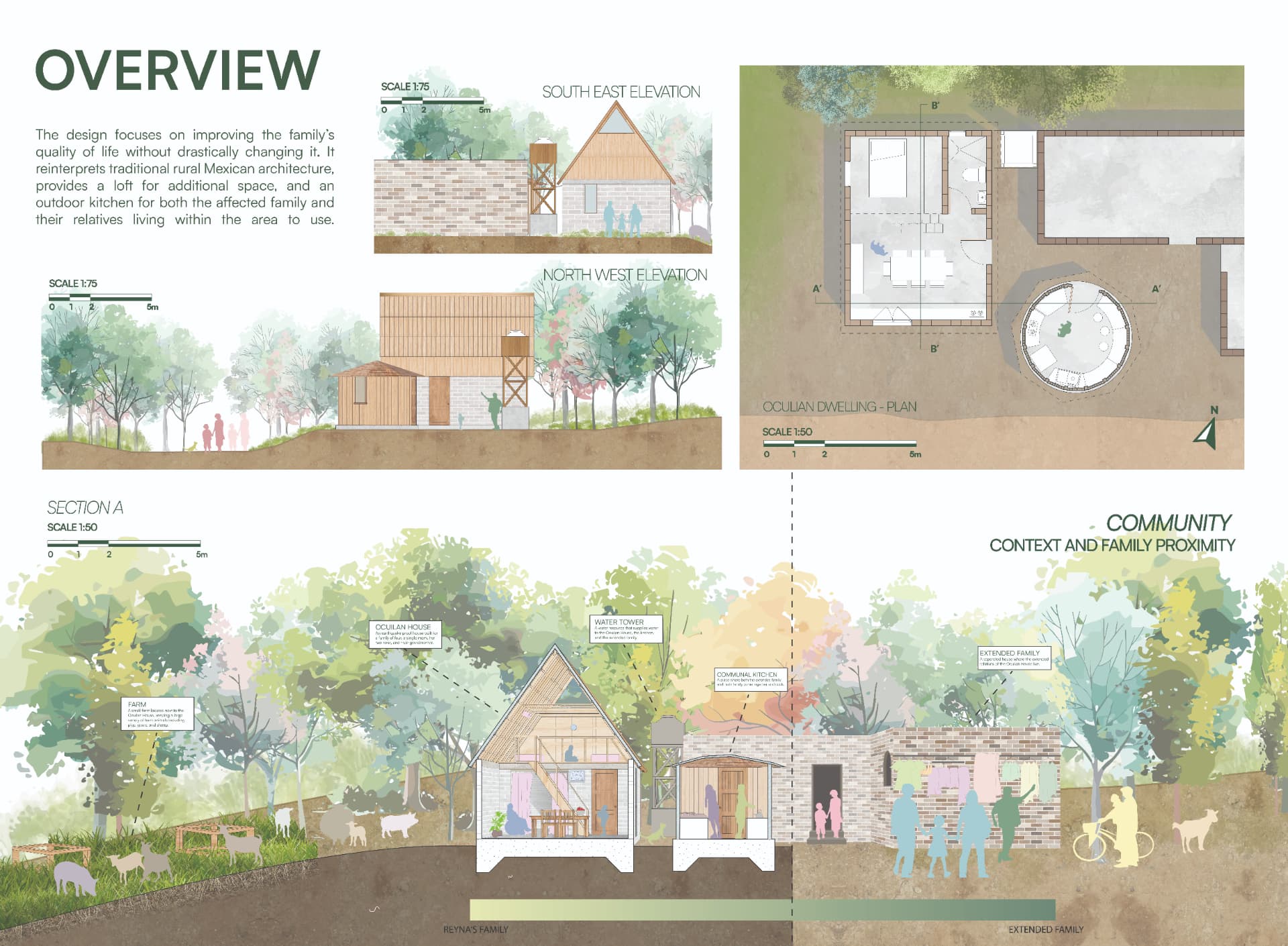

Elevations, plan, and section

South east and north west elevations at 1:75, the dwelling plan at 1:50, and a long section reading the house against the farm, water tower, communal kitchen, and the extended family's compound.

Overview board with south east and north west elevations, dwelling plan, and Section A through the community
Elevations 1:75, plan 1:50, Section A 1:50
Construction05

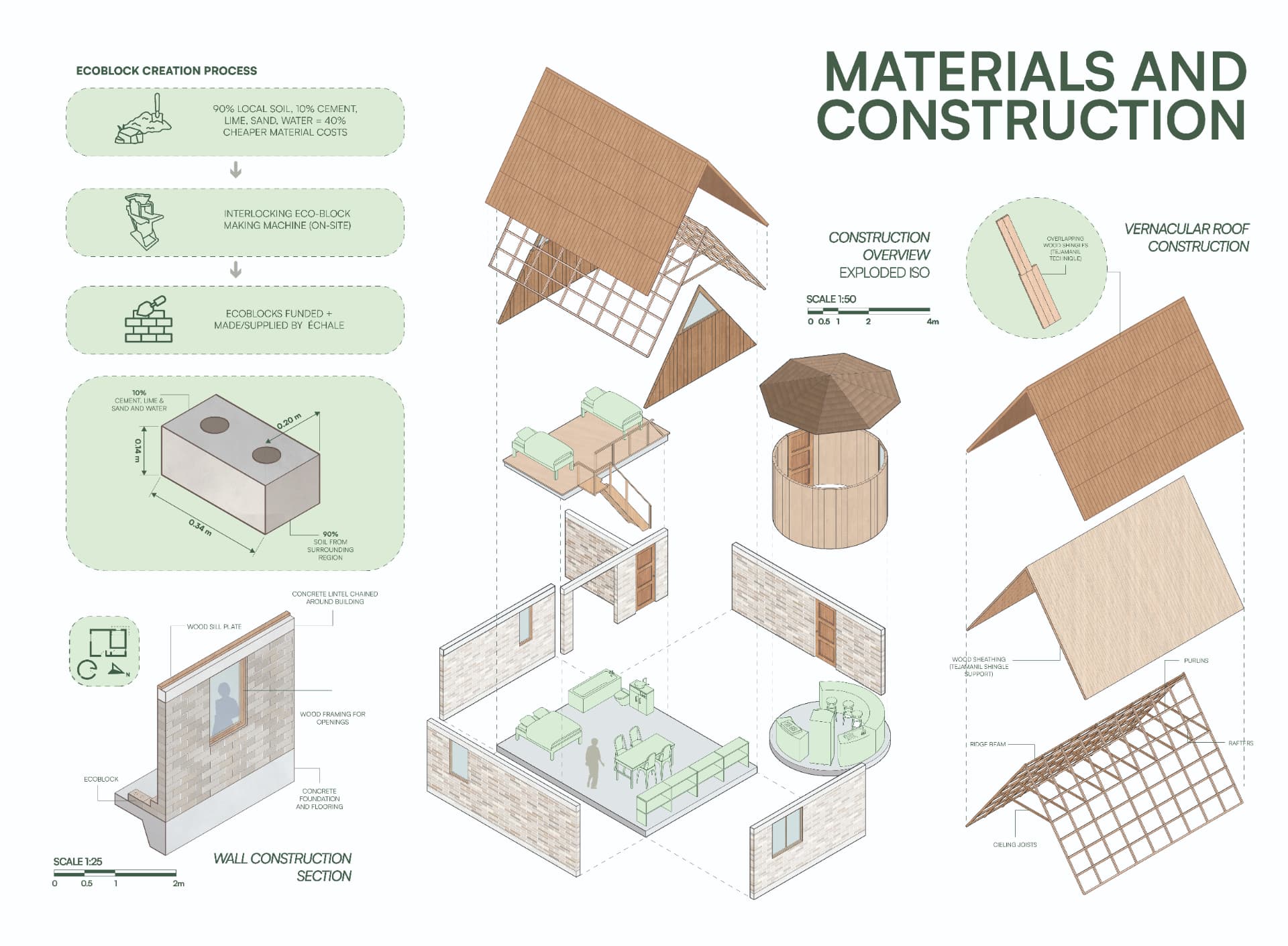

Materials and construction

Ecoblock production from 90 percent local soil, a wall construction section at 1:25, the exploded construction isometric, and the vernacular tejamanil shingle roof build-up.

Materials and construction board with ecoblock process, wall section, exploded isometric, and vernacular roof
Ecoblock process, wall section 1:25, exploded iso 1:50
Project metadataColophon
Year
2024
Course
DES 302
Location
Ocuilan de Arteaga, Mexico
Program
Case study - emergency post-earthquake home
Tools
Rhino, Illustrator, Photoshop, InDesign
Collaborators
Ashna D., Hannah J.
